2025· mechatronics· embedded· frontend· ai
A door lock that opens to a face, controlled from a browser anywhere — recognition running on the device, not in a cloud.

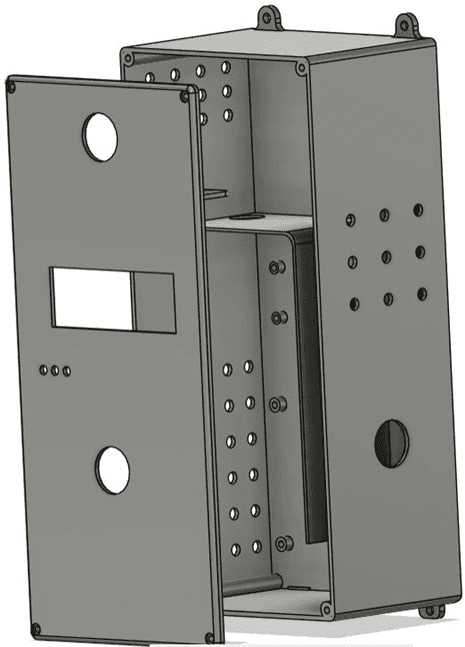

Sole engineer. Component selection, embedded Python on the Raspberry Pi, the Flask control API, the React control app, and the 3D-printed enclosure. Final-year B.Eng project, Afe Babalola University, supervised by Engr. Dr. A. Akinwumi.
Keys and passcodes can be copied, shared or stolen, and none of them leave a record of who came through the door. The published Raspberry Pi attempts at solving this split into two camps: those running recognition on hardware too weak for it — ESP32-CAM boards that could not hold real time — and those with adequate compute but no remote control path at all. Nobody had both, and both were the requirement.
A physical button on the enclosure and a remote API endpoint both call the same internal routine. The local path needs no network at all, so a dropped connection degrades the system to exactly what it was before — a door you walk up to — rather than to a locked box.
128-dimensional encodings compared locally rather than sent to a hosted model. That removes network round-trip from the critical path, removes a privacy problem, and removes an availability dependency. The threshold is deliberately tight — the consequences of the two error directions are not symmetric.
Rather than storing every enrollment photo and matching against all of them, the encodings are averaged into a single vector per person. It costs some per-image precision and buys robustness across the lighting the doorway actually sees.
WebRTC would have been lower latency and would also have required a signalling server, TURN fallback and a pile of client state. A multipart JPEG stream renders in an ordinary image tag with no client-side code at all. For deciding whether to open a door, the latency difference does not matter; the complexity difference does.
The unlock handler sets an expiry timestamp and returns immediately; a separate thread re-engages the lock when the deadline passes. Sleeping inside the request would have held the response open for five seconds and, worse, would have left the door open permanently if the request died mid-sleep.
Gave up
20% of authorized attempts fail in low light and have to be retried
Bought
Recognition that never leaves the device — no cloud latency, no per-request cost, and no face data in anyone else's datacentre
Gave up
One in four authorized attempts rejected on first try at the 0.40 threshold
Bought
A bias toward refusing the right person over admitting the wrong one. For a lock, a retry is an annoyance and a false accept is a break-in.
Gave up
Bandwidth, and no audio channel
Bought
A live video feed that worked in a single <img> tag with zero client-side streaming code
Gave up
GPIO interrupt handlers had to be torn down and re-registered around every actuation
Bought
A button that could not double-fire mid-unlock. This was the bug that took longest to find: two threads, one hardware resource, and a failure that only appeared under the multi-worker API setup.
Face match
1.3 s
on-device, Raspberry Pi 4
Remote unlock
800 ms
end-to-end, browser to bolt
Recognition — daylight
47 / 50
Recognition — low light
40 / 50
Unknown correctly refused
29 / 30
False accepts
2 of 20
Small sample and a prototype threshold. This is the number that says the system is not production-ready, and it is the first thing I would attack.
False rejects
5 of 20
Deliberate — the direction the threshold was tuned toward
Lock actuation
50+ cycles, 0 failures
Total project cost
₦350,000
Ratios are given as raw counts rather than percentages. A percentage implies a precision that twenty attempts do not have.
